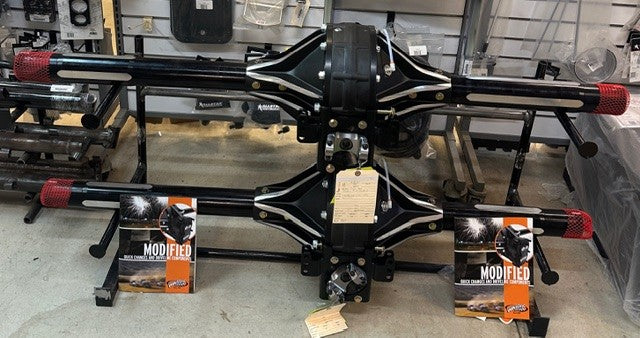

Winter Stub Nose Rear End

The Winters brand new Snub Nose Quick Change reduces that stress and greatly improves strength and reliability in several ways:

• 3" shorter center section allows for a longer driveshaft mounted at a less severe angle. The improved driveline geometry saves U-Joints and increases rear end durability.
• 28-spline billet steel yoke has a dedicated bearing to absorb the stress from the driveshaft, protecting the lower shaft from excessive flex and prolonging the life of the shaft.
• New bearing in the rear gear cavity interposes the lower change gear between two bearings, creating a floating lower shaft and virtually eliminating stress at the lower gear.
• Permanent Mold center section and 8-rib bell castings are significantly stronger than the sand cast components available in other quick changes on the market.

Both Standard & +2" Length LR Tubes available
